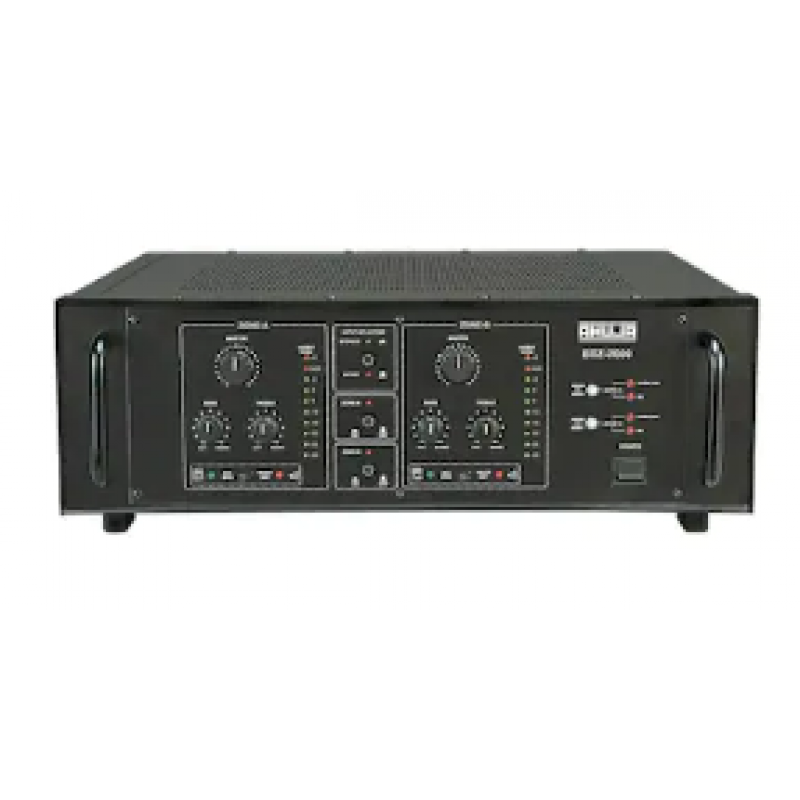

Ahuja Two Zone PA Amplifier [BTZ-7000]
Specification
BrandAhujaPower SupplyAC: 220-240V 50/60Hz DC: 36V (3x12V Car Battery)Frequency Response50-15,000Hz +/- 3 dBSignal To Noise Ratio60 dBSpeaker Output4ohm, 8ohm, 70V& 100V for each zoneTypePA AmplifierOutput VoltageLine L/R 1V/1kohmOutput Power500W + 500W Max., 350W + 350W RMS at 10% THD, 300W + 300W RMS at 5% THD, 280W + 280W RMS at 2% THDProduct Weight39.0000 kgProduct Dimensions510 x 185 x 470 mmPowerAC: 1100VA, DC: 13AInput Channel FunctionsMono 2 x 200mV/100k, Stereo L/R 200mV/100k, Line L/R 1V/50kTone ControlsBass: +/- 10dB at 100Hz, Treble: +/- 10dB at 10kHzOutput Regulation</- 2 dB, no load to full load at 1kHzProduct ModelBTZ-7000
Brand
Ahuja
Power Supply
AC: 220-240V 50/60Hz DC: 36V (3x12V Car Battery)
Frequency Response
50-15,000Hz +/- 3 dB
Signal To Noise Ratio
60 dB
Speaker Output
4ohm, 8ohm, 70V& 100V for each zone
Type
PA Amplifier
Output Voltage
Line L/R 1V/1kohm
Output Power
500W + 500W Max., 350W + 350W RMS at 10% THD, 300W + 300W RMS at 5% THD, 280W + 280W RMS at 2% THD
Product Weight
39.0000 kg
Product Dimensions
510 x 185 x 470 mm
Power
AC: 1100VA, DC: 13A
Input Channel Functions
Mono 2 x 200mV/100k, Stereo L/R 200mV/100k, Line L/R 1V/50k
Tone Controls
Bass: +/- 10dB at 100Hz, Treble: +/- 10dB at 10kHz
Output Regulation
</- 2 dB, no load to full load at 1kHz
Product Model
BTZ-7000
Ahuja Two Zone PA Amplifier [BTZ-7000]
- Views: 106
- Vendor: Varad Corporation
- Vendor Type: Manufacturer, Distributor, Supplier
- Product Code: BTZ-7000
- Availability: In Stock
